At LightGuard Systems, we're deeply committed to ensuring pedestrian and motorist safety through our innovative product components. Our range of safety systems are meticulously designed, integrating cutting-edge technology, high-quality materials, and rigorous testing to provide effective solutions for traffic safety challenges. From traffic signal systems to pedestrian crossing products, we're at the forefront of developing equipment that keeps people safe on the roads, providing peace of mind for pedestrians, drivers, and city planners alike. Dive into the world of our robust safety systems and discover how we're shaping a safer future for everyone.

Want to learn more about the components that make up our pedestrian & motorist safety systems? Read more information on major components below, including features and benefits, applications, warranty & maintenance, and specifications.

Lightstar LGS-M11 IRWL with Uplight
Description
- Lightstar™ Plus with SMPL™ is the next-generation in-roadway warning light (IRWL) with a moisture-resistant design, fiberglass reinforced rigid thermoplastic exterior, and revolutionary surface mount pedestrian luminaire. It's built to last with a durable design.
- Amber LEDs flash towards the motorist at the highly visible Enlighten1™ rate. Simultaneously, White LEDs illuminate the pedestrian in the crosswalk (at nighttime) for the cross-time duration.
Features
- Seamless, moisture-resistant design
- Visible to motorists up to 1,000 feet
- Ruggedized exterior that's built to last
- Superior resistance to roadway wear and tear
- High-intensity amber flashing LEDs captures motorist attention
- Enlighten1™ flash rate is photosensitive epilepsy safe
- SMPL™ white pedestrian luminaire
- Easily mounts to roadway base
- Minimal maintenance required
- Debris-Free Self Clearing, built into the base plate
- Snap together waterproof electrical connections
- Fits 10″ Composite and 14″ Steel Snow plow Resistant Base Plates
- Operates on solar and/or AC power
IRWL Applications
IRWL is primarily used to alert motorists of pedestrians inside or about to enter a crosswalk using amber LEDs, a controlled stop ahead using red LEDs, and lane delineation markers using white LEDs. Typical environments for amber LEDs include:
- mid-block uncontrolled public crosswalks
- school zones
- trail crossings
- facility entrances/exits, such as airports and hospitals
IRWL Activation Methods
IRWL can be activated via push-buttons, passive pedestrian detection bollards, and motion-activated sensors. Once activated, the light fixtures flash, warning motorists up to 1,000 feet in advance.

IRWL Mounting
- Lightstar easily connects to the electrical cable system wires with water resitant splices. The interior of the light fixture unit is designed with double redundancy, isolating the sealed LED modules from environmental moisture and corrosive intrusion.
Debris-Free Self Clearing
- DuraFlash is designed to fit tightly into the protective base plate, containing a Debris-Free Self Clearing built-in feature. Fluted air channels push air up and away as tires pass over the base plate, keeping the LED light fixture free from debris build-up.
- The slight elevation of the IRWL fixture positioned above the road grade is further intended to help alleviate any blockage by debris. Its shallow 1-1/2″ depth ensures that the subsurface roadbed is not compromised.
Enlighten1™ Flash Rate — Photosensitive Epilepsy Safe
- Our Enlighten1™ flash rate reaches a primitive part of the brain that elicits a response to danger. It was developed in conjunction with the University of California, Berkeley Vision Detection Laboratory and designed to catch the motorists' attention without creating any unwanted adverse effects flashing lights might have on photosensitive epilepsy.
- According to the Epilepsy Foundation of America, exposure to flashing lights at specific intensities or certain visual patterns can trigger seizures in 3 percent of people with epilepsy. This condition is known as photosensitive epilepsy. Enlighten1 is a public safety feature unique to LightGuard Systems' flashing LED warning products.
IRWL Crosswalk Installation
- When installing IRWL at crosswalks, each IRWL faces away from the crosswalk and points in the direction of oncoming motorists' (NOT straight forward). The result is a slightly different, uniquely pointed angle for each IRWL.
- Before installation, the proposed IRWL site should be observed with particular attention to vehicle tire paths. As per Section 4N.05 & .06 of the MUTCD, IRWLs should be installed in each traffic lane, at the centerline of the roadway, at each edge of the road, or parking lanes, or other suitable locations away from the average tire track paths. The location of the IRWLs within the lanes should be based on engineering judgment. For additional information, refer to our published IRWL layouts.
Warranty & Maintenance
- LightGuard Systems offers a three-year conditional warranty on its in-roadway warning light fixtures and five years on its base plates. Maintenance includes removing four bolts electrically disconnect and lifting the fixture out of the base plate. Our IRWL fixtures are designed for 100% backward compatibility with any older generation base plate models.
Related Links

DuraFlash™ Plus simultaneously warns motorists and illuminates pedestrians at nighttime

Button
DuraFlash™ Plus simultaneously warns motorists and illuminates pedestrians at nighttime

Button
DuraFlash Plus with SMPL in 10” LGS-SD10-C composite base plate

Button
The IRWL is fastened to the base plate with stainless steel button head 1⁄4″-20 screws with thread locks and factory applied anti-seize compound to the screws.

Button
14″ case hardened steel IRWL base plate

Button
SFO Airport pedestrian crossing – LightGuard Systems

Button
2-Lane, 2-Way in-roadway warning light Layout with Center Turn Lane

Button

Slide title

Lightstar Plus LGS-M10 SMPL - IRWL with Up-light

Button
Lightstar™ Plus simultaneously warns motorists and illuminates pedestrians at nighttime

Button
The IRWL is fastened to the base plate with stainless steel button head 1⁄4″-20 screws with thread locks and factory applied anti-seize compound to the screws.

Button
Lightstar Plus with SMPL in 10” LGS-SD10-C composite base plate

Button

10” Composite Base Plate
Description
- Base plates protect and house the LightStar in-roadway warning light —and are designed for durability and reliability in the roadway. Our 10” x 1.5” standard base plate consists of ultra-high-strength, high impact fiber reinforced thermoplastic polymer composite material. It is designed to be permanently embedded into the roadway for years of maintenance-free operation.
Features & Benefits
- Secures to roadway
- Easily installs into the pavement
- Maintenance-free operation
- Simple electrical connections
- Debris Free™ Self Clearing design
- Adaptable to tamper-resistant hardware
- High strength impact resistant composite
- Dimensions: 10″ diameter by 1 1/2″ deep

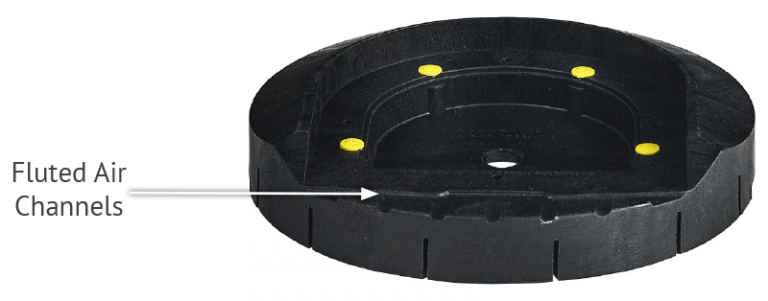

- Our Debris Free™ Self Clearing design features fluted air channels. As tires pass over the base plate, the compressed air channels dirt and debris through the fluted air channels — keeping the LED signal head free from roadway debris build-up.
- The slight elevation of the IRWL signal head positioned above the road grade is intended to alleviate blockage by debris. Its shallow 1 1/2″ depth ensures that the subsurface roadbed is not compromised. The base plate is compatible with our 9X LED LightStar™ signal head module.
Installation
- A two-part epoxy compound permanently embeds the base plate into the roadway. The base plate can be installed into asphalt or concrete.
- LightStar™ in-roadway warning light with 10″ composite base plate
Related Links
- Product warranty
- Product spec sheet

LightGuard Systems LGS-SD10-C 10″Base Plate Product Spec

Button
9X LED LightStar™ in-roadway warning light with 10″ composite base plate

Button

LightGuard Systems LGS-SD10-C 10″Base Plate

Button

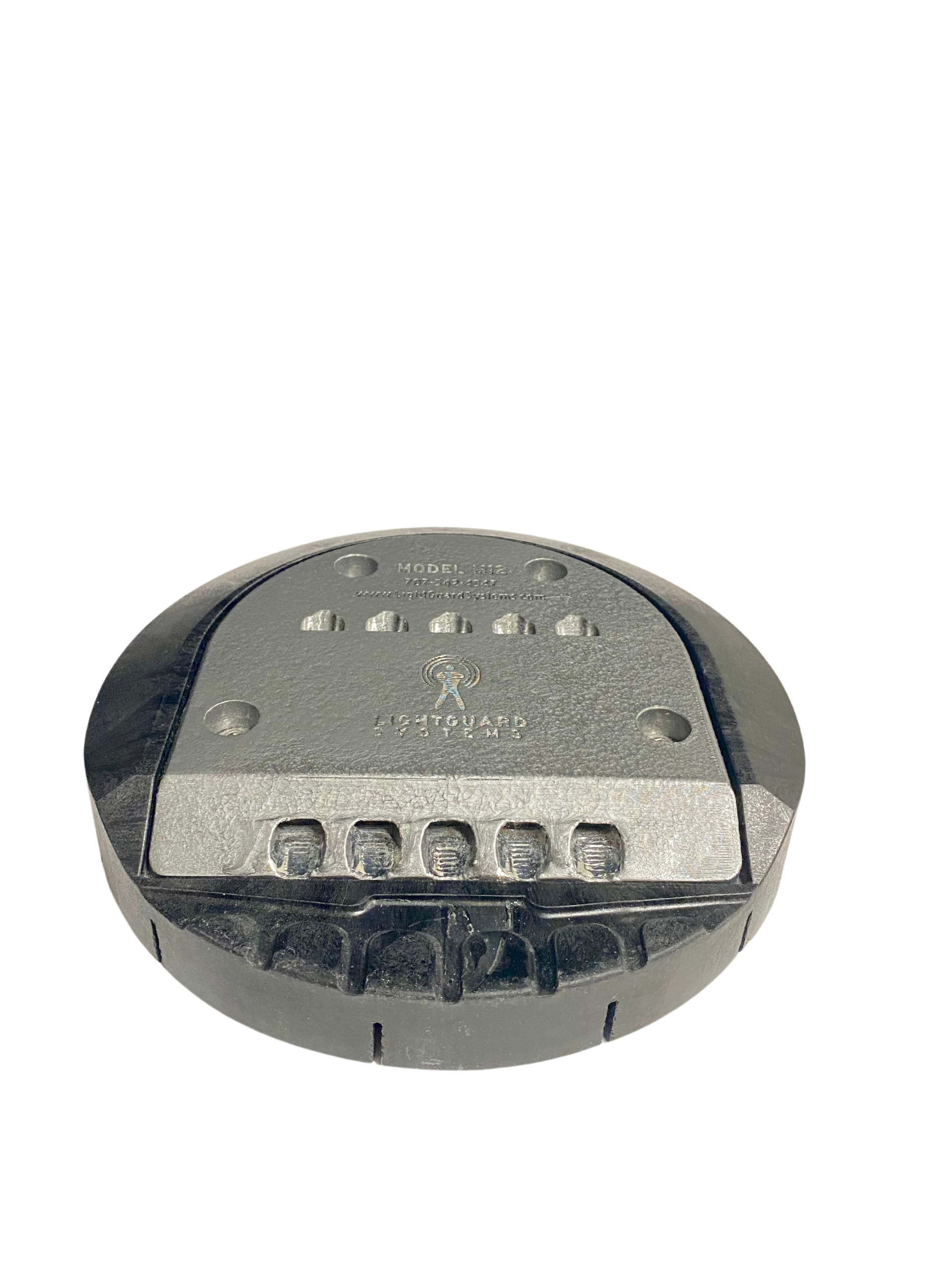

14” Steel Snow Plow Resistant Base Plate
Description
- Our 30 lb. 14″ snow plow blade resistant base plate is the most durable base plate on the market. It is made from high-strength case-hardened steel with two outer coats of corrosion-resistant steel primer.
- Virtually indestructible, it is ideal for snowy regions where snow removal equipment is used on the roadway.
- The 14″ snow plow blade resistant base plate is used to secure and protect our LightStar™ IRWL light fixture.
- The 14″ steel snow plow base plate features two wingtips and a nose bridge. When the snowplow blade strikes the base plate, the edge is lifted up and over the top of the IRWL.
Debris Free Self Clearing™
- Features parallel fluted slots on either side of the center nose bridge, which help prevent road debris build-up that could block the light fixture LED lens. This feature reduces maintenance requirements and extends product life.
- The steel base plate can be installed into asphalt or concrete. The shallow depth ensures that the road subsurface is not compromised. The top outer edge of the base plate is flush with the road surface with the light fixture projecting 1/2″ above grade.
Installation
- A two-part epoxy compound is used to permanently embed the 14″ steel case-hardened snow plow base plate into the roadway. The base plate can be installed into asphalt or concrete.
Related Links

The 14″ steel snow plow blade resistant base plate has a depth of 1 1/2 inches.

Button
Debris Free Self Clearing™ design features parallel fluted slots on either side of the center nose bridge which help prevent road debris build up that could block the light fixture LED lens. This feature reduces maintenance requirements and extends product life.

Button

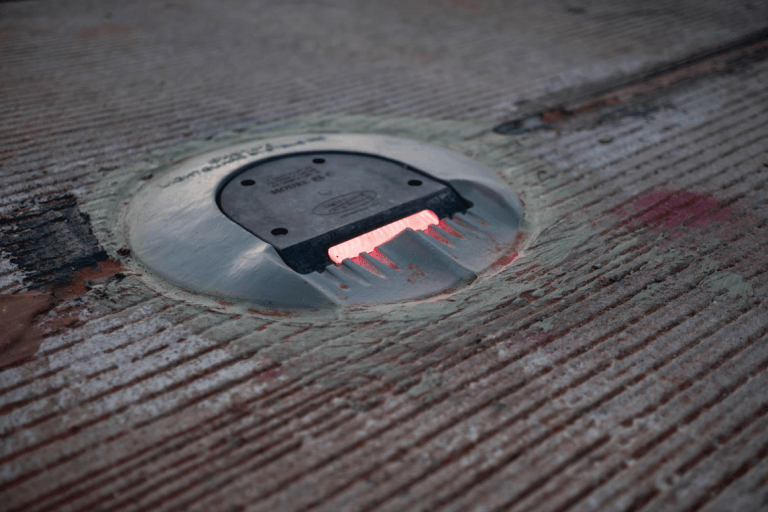

9X Red LED LightStar™ in-roadway warning light with 14″ steel base plate

Button
Embedded LED lights after snow plow activity

Button

9X Red LED LightStar™ in-roadway warning light with 14″ steel base plate

Button
The 14″ steel snow plow blade resistant base plate has a depth of 1 1/2 inches.

Button
Debris Free Self Clearing™ design features parallel fluted slots on either side of the center nose bridge which help prevent road debris build up that could block the light fixture LED lens. This feature reduces maintenance requirements and extends product life.

Button
Embedded LED lights after snow plow activity

Button

Push-Button Devices
NEW! SmartSense touchless push-button upgrade kit
SmartSense™ touchless push-button sign upgrade kit helps reduce the risk of exposure to contact viruses by decreasing potential cross-contamination from one of the most commonly used public devices: the crosswalk push button. The SmartSense™ touchless PBA device uses IR technology to activate a crosswalk PED-walk cycle or LightGuard lighted crosswalk with a simple hand wave. Learn more.

LGS-PBA push-button station with LEDs
LightGuard’s LGS-PBA push-button assembly has a large touch-sensitive button with either a left or right-facing figure. Once the button is pushed, the system is activated. Three LED lights located on the faceplate simultaneously begin to flash in sync with the system’s in-roadway warning lights (IRWL), RRFBs, and/or LED signs—alerting the pedestrian that the lighted crosswalk system is active. Pedestrians can use push-buttons alone or as an adjunct activation method to passive activation bollards.

Features
- ADA compliant
- Easy electrical connections
- Easily mounts to existing poles
- Available with multiple placards
- Large mushroom touch-sensitive button
- 12VDC operation (Down To 9VDC)
- Supplemental amber LEDs
- Comes in pairs for both sides of the crosswalk
Audible push-button stations
- The LGS-PBA-Guardian push button is MUTCD & ADA compliant. When pushed, it triggers an audible alert—letting pedestrians know that the system’s flashing in-roadway lights, LED signs, and/or RRFBs are activated. Pedestrians can use push-buttons alone or as an adjunct activation method to passive activation bollards.

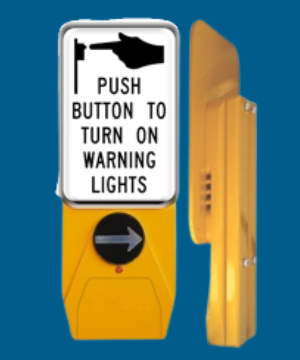

Other MUTCD push-buttons & placards
- Other push-button devices are available with multiple MUTCD-compliant placard styles.
- These include Braille, left and right facing pedestrian figure, directional arrow, text only, and custom audible voice message or sounds.
- Pedestrians can use push-buttons alone or as an adjunct activation method to passive activation bollards.
Related Links
- Product warranty
- Product spec sheets

The SmartSense™ touchless PBA device uses IR technology to activate a crosswalk PED-walk cycle or LIGHTGUARD lighted crosswalk with the simple wave of a hand. Learn more.

Button

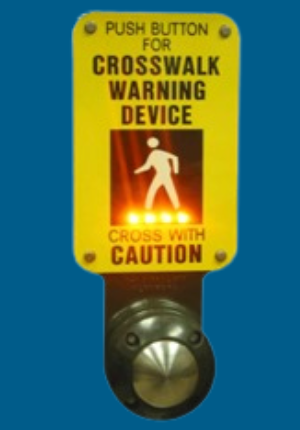

LGS-PBA push button with LEDs that flash in sync with crosswalk lights

Button
LGS-BPA-Guardian with audible push button

Button

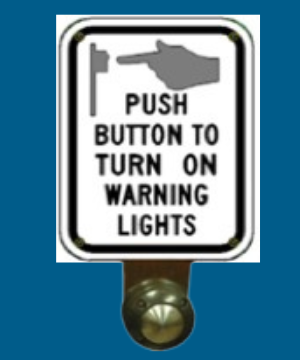

R10-25 MUTCD crosswalk warning lights push button placard

Button

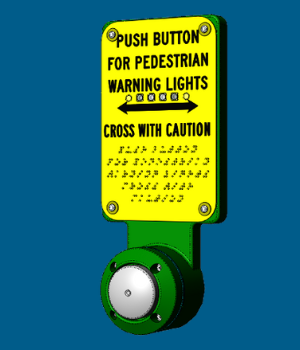

MUTCD braille placard push button for pedestrian warning lights

Button

The SmartSense™ touchless PBA device uses IR technology to activate a crosswalk PED-walk cycle or LIGHTGUARD lighted crosswalk with the simple wave of a hand. Learn more.

Button
LGS-PBA push button with LEDs that flash in sync with crosswalk lights

Button
LGS-BPA-Guardian with audible push button

Button
R10-25 MUTCD crosswalk warning lights push button placard

Button
MUTCD braille placard push button for pedestrian warning lights

Button

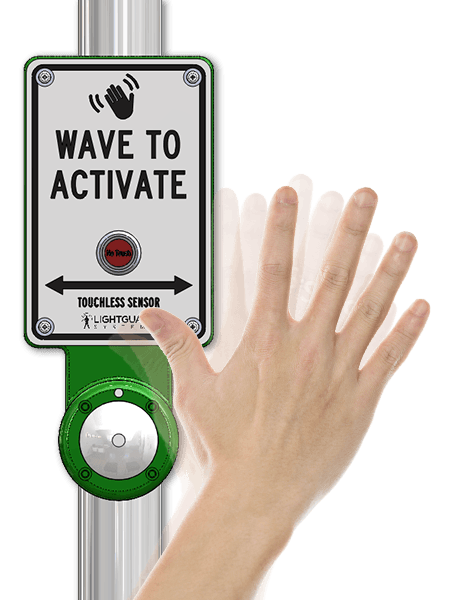

SmartSense Touchless Push-Button
SmartSense™ touchless push-button sign upgrade kit helps reduce the risk of exposure to contact viruses by decreasing potential cross-contamination from one of the most commonly used public devices: the crosswalk push button. SmartSense™ uses IR technology to activate a crosswalk PED-walk cycle or LightGuard lighted crosswalk with the simple wave of a hand. This device was designed to help cities, municipalities, and state health officials fight COVID-19 and the spread of most viruses that can be contagious on surfaces for minutes or days.

Description
- The SmartSense™ sign mechanism mounts in a compatible push-button station or to a pole near existing push-button devices. When pedestrians reach out to press the button, the proximity sensor detects the pedestrian's action and engages the touchless mechanism to the call signal and then to the crosswalk controller before pedestrian contact with the button/switch.
- SmartSense touchless push button is ideal for use with any LightGuard Systems (LGS) in-roadway warning light, RRFB, or LED border-enhanced warning sign system. It can also be an adjunct activation method with most other manufacturers' PBA stations at public crosswalks and controlled intersections.
Short-Range Infrared Proximity Sensor Kit
- The LGS-PBA-SMART is a short-range infrared proximity sensor kit that connects with existing pedestrian detector push-button mechanisms via a relay to send a call signal to a crosswalk controller. It supplements the LGS-PBA manual push button.
Related Links
- Request product specs
- Product warranty

SmartSense™ touchless PED push button helps reduce pedestrian exposure to contact viruses commonly found on public surfaces

Button
Pole Mount

Button
Station Mount

Button

SmartSense™ touchless PED push button helps reduce pedestrian exposure to contact viruses commonly found on public surfaces

Button
Pole Mount

Button
Station Mount

Button

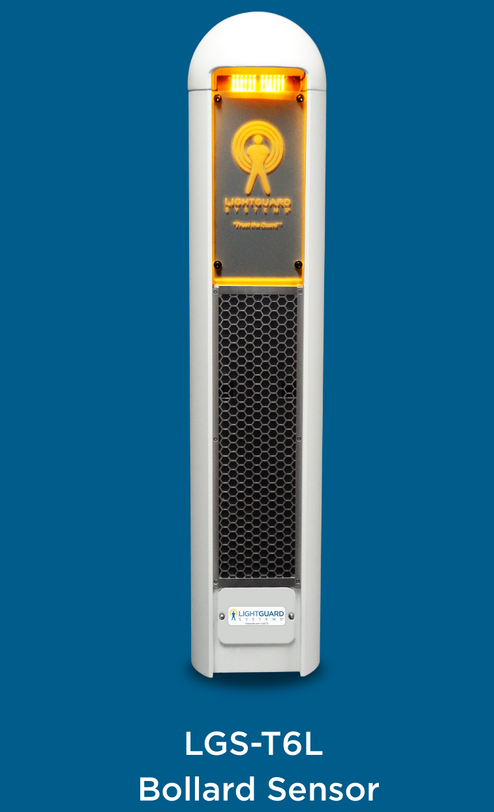

T6 & T6L Automatic Activation Bollard
Description
- Our next-generation T6 & T6L Automatic Activation Bollards are more attractive and offer more safety lighting features than their predecessor—and any similar product in the industry.
- A new, customizable lighted logo/graphic embellishment and 24/7 courtesy light softly illuminates and calls pedestrians’ attention to the lighted crosswalk entrance—inviting them to a safer place to cross the street.
Features & benefits
- Passive pedestrian detection
- Elliptical, sleek aesthetic design
- Directional-detecting infrared sensors
- *NightGuide™ crosswalk entrance light
- Custom lighted graphic embellishment
- BlockSafe™ ensures continuous operation
- Capable of interfacing with other ITS devices
- Durable aluminum construction
- Optional audible sounds
The Gateway Bollard System – Invented by LightGuard Systems®
- The crosswalk entry ‘gateway’ is created by two opposing bollards, installed at least 1.5’ – 4’ (feet) from the curb and as wide as possible at the crosswalk entrance. As pedestrians enter the crosswalk, passing between the two bollards, infrared light beams detect their presence and automatically activate the system. Due to this, no pedestrian action is required. Bollards activate Smart Crosswalk™ in-roadway warning lights (IRWLs), LED border-enhanced warning signs, and RRFBs.
- The T6 & T6L Bollard infrared light beams are directionally sensitive and activate only as pedestrians enter the crosswalk. Subsequently, no pedestrian action is required. T6 Bollards (40 foot range) & T6L Bollards (100 foot range) contain vandal-resistant stainless steel fasteners, and user-adjustable sensor orientation and sensitivity levels. BlockSafe™, a feature of the FailSafe™ system, ensures continuous operation—even if the infrared light beam between two bollards is blocked. FailSafe™, our proprietary default operating mode, triggers a blinking pattern that remains on until the system signal or blockage notice is cleared.
NightGuide™ Crosswalk Entrance Lighting
- NightGuide™ contains an internally illuminated LED module—providing a courtesy light that “invites” pedestrians to a safer place to cross the street. NightGuide™ is continuously on both night & day.
Compatibility
- The new T6 & T6L Bollards are compatible with all Smart Crosswalk™ system components, LED lights, solar systems, controllers, RRFB’s, radar, and other wireless ITS systems. It offers its most total capabilities to customers using the complete Smart Crosswalk™ In-Roadway Warning Light pedestrian safety system with flashing LED signs.
Applications
- Because of its automatic activation and the fact that it is virtually impervious to false activation, the T6 & T6L Bollards are an ideal solution for public crosswalk safety at cities, airports, school zones, parking garages, campuses, airports, and private facilities.
- It is sold as an automatic activation method option along with Smart Crosswalk™ In-Roadway Warning Light systems, flashing LED signs, solar and wireless sign systems, and other pedestrian safety products offered by LightGuard System.
Why Automatic Activation?
- Studies show that manual activation is only used by approximately 60% of pedestrians—leaving as many as 40% of pedestrians exposed without the benefit of a lighted Smart Crosswalk™ system.
General Specifications
Maximum distance between bollards: T6 = 40 feet, T6L = 100feet
Power consumption: 2.5 Watts
Operating temperature: -20° to 80°C
Exterior color: White; custom colors available
Outer enclosure material: 0.125″ aluminum
*NightGuide™ light color: Amber
Custom lighted graphic: Requires a .BMP graphic; fees apply
Dimensions: 42” height; 8” diameter
Installation: Mounts via concrete anchor bolts
*patent-pending

Related Links
- Product warranty
- Product spec sheets

LightGuard Systems LGS-T6 Automatic Activation Sensor Bollard Product Spec

Button
NightGuide™ contains 12 internally illuminated LEDs—providing a courtesy light that “invites” pedestrians to a safer place to cross the street. NightGuide™ is continuously on both night day.

Button
Because of its automatic activation and the fact that it is virtually impervious to false activation, the T6 bollard is an ideal solution for public crosswalk safety at cities, airports, school zones, parking garages, campuses, airports and private facilities. It is sold as an automatic activation method option along with Smart Crosswalk™ in-roadway warning light systems, flashing LED signs, solar and wireless sign systems, and other pedestrian safety products offered by LightGuard System.

Button

LightGuard Systems LGS-T6 Automatic Activation Sensor Bollard Product Spec

Button
NightGuide™ contains a downward facing LED module —providing a courtesy light that “invites” pedestrians to a safer place to cross the street. NightGuide™ is continuously on.

Button
Because of its automatic activation and the fact that it is virtually impervious to false activation, the T6 &T6L bollards are an ideal solution for public crosswalk safety at cities, airports, school zones, parking garages, campuses, airports and private facilities. It is sold as an automatic activation method option along with Smart Crosswalk™ in-roadway warning light systems, flashing LED signs, solar and wireless sign systems, and other pedestrian safety products offered by LightGuard System.

Button

LED Enhanced Signage

Button

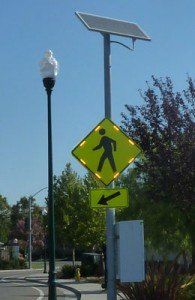

36″ x 36″ solar school crossing sign system w/braille push buttons, National City, CA

Button

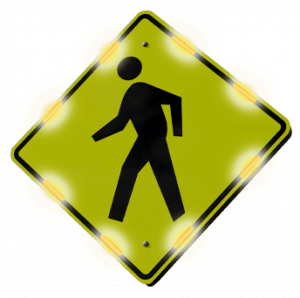

Pedestrian (W11-2) Crossing Sign – MUTCD standard. Typically installed with A/W11-2B down pointing arrow sign.

Button
School (S1-1) Crossing Sign – MUTCD standard

Button
Stop Sign (30″Octagon)

Button

System Controllers
AC & Solar Lighted Crosswalk System Controllers – from LightGuard Systems®
Controllers function as the “brain” of the Smart Crosswalk lighted crosswalk system. Users can set up and adjust the activation timing of the flashing LED lights, monitor the system, capture data, and more. A fail-safe feature automatically warns users of any system malfunction.

Our controllers are available in AC, solar, and wireless solar operation and accept activation signals from manual push-button devices and passive pedestrian detection devices such as bollards, remote activation devices (RADs), and motion detection sensors. Automatic pedestrian detectors only initiate the flashing sequence as pedestrians enter the crosswalk, not as they are exiting.

When the system controller is activated, it sends a signal to the system, initiating the Enlighten 1™, wig-wig (RRFB), or custom flash pattern of in-roadway warning lights (IRWL), flashing LED border-enhanced warning signs, and/or RRFBs.

Advanced AC & Solar Controllers
- Our advanced AC and Solar controllers can monitor and store data, such as time, date, and movement in each crosswalk direction. They can be programmed to turn on automatically at a specific time and then revert to standby mode for regular operation. They also have instantaneous backup power in the event of a power failure.
- The advanced controller accepts call signal inputs from manual pedestrian push-button devices and automatic activation detectors (bollards, motion sensors, and other external inputs). Once activated, the Enlighten1™ flashing light pattern is emitted by the in-pavement warning lights, and any additional LED enhanced signage.
- The advanced controller can also be enhanced to accommodate additional pedestrian safety measures such as simultaneous yet independently activated crosswalks (dual zones), remote communication, and custom-based applications.
Advanced Controller Features:
- battery powered (solar sysetms)
- Stand-alone solar panel (solar systems)
- pole or wall mount Aluminum enclosure
- Lockable vented cabinet
- Internal branch circuit protection
- Easy to install electrical connections
- microcontroller PLC with ethernet port & SD card slot
- Surge Protection
- 120 VAC Single Phase or 240 VAC Two-Phase (AC systems)
- Base model software is compativle with Illuminated Signs, IRWL, RRFB, & SMPL
- Upgrade kits/software for AC or DC beacons, dual zones, wireless advance warning beacons, external switches (gates), and audible sound notifications
- The programmable user interface has a keypad and multi-line/character LCD with SD card slot for data logging/transfer/storage.
- The user interface allows for multiple option selection and preset programming.
- Proprietary software program provides practical, reliable operation enabling the user to make simple adjustments to the Smart Crosswalk™ system parameters.
2 Zone AC & Solar Power Controllers

Wireless Controllers
- Solar or AC powered

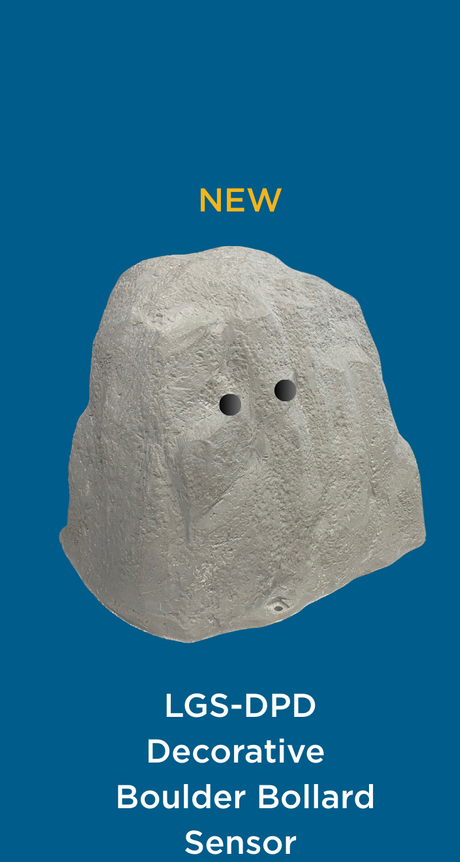

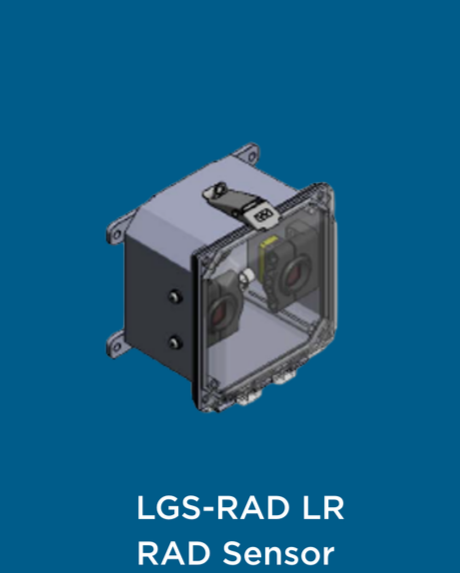

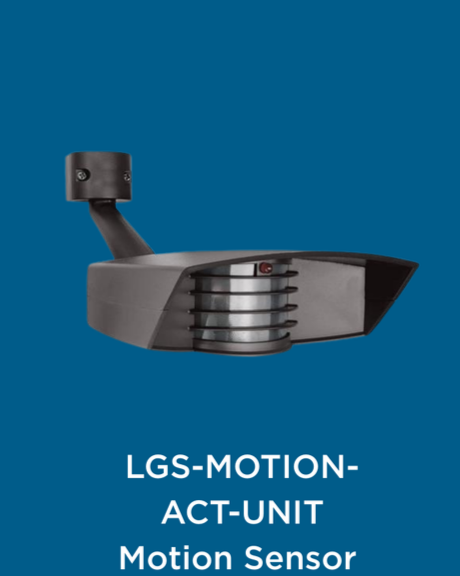

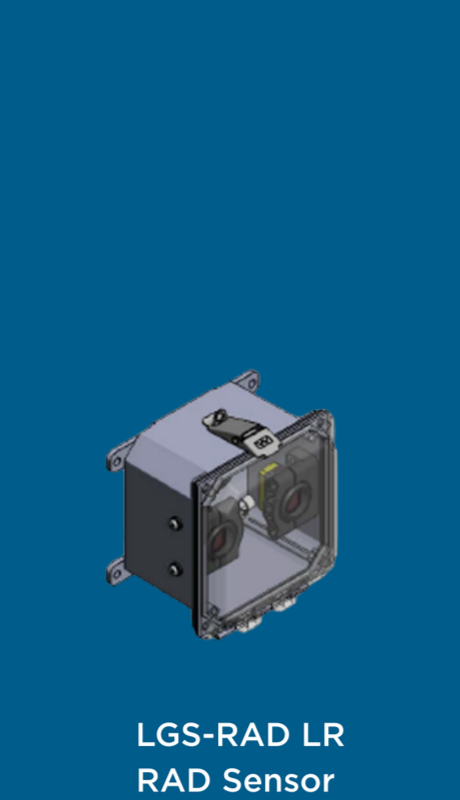

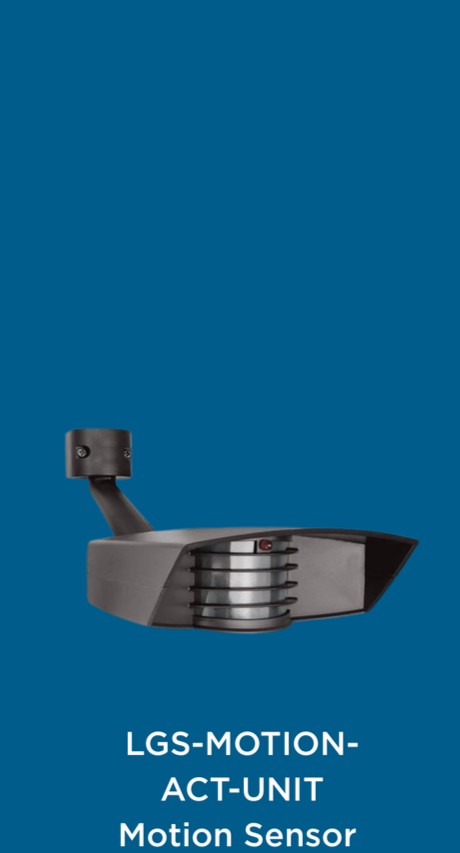

- The wireless controller accepts call signal inputs from manual push-button devices and passive pedestrian detection devices such as bollards, remote activation devices (RADs), and motion detection sensors. The activation devices initiate the Enlighten1™, wig-wig (RRFB), or other custom flash rates.
- The wireless system uses FCC-approved matched transceivers to securely communicate activation inputs from both ends of the crosswalk, up to 250 ft. apart. The solar capacity of each electronic enclosure in the system (master or slave) can support up to 2 model LGS-W-SIGN + 2 RRFB for 325 daily activations at 20 seconds each, for a minimum of 10 days without battery recharge (based on locations receiving as little as 4 hours of full sun per day). Depending on actual usage needs, additional solar panels and/or batteries may be recommended.
- The controllers and transceivers are factory installed, assembled into a NEMA 4 rated cabinet. The onboard micro-controller allows for multiple option selection. The programmable control unit user interface has a 16-digit keypad and a two line-20-character liquid crystal display with 2-megabyte external memory.
- The system includes a lockable, weather-tight enclosure, solar panel, and mounting brackets. Also included are two 12-volt deep cycle sealed lead-acid (SLA) batteries.
- Each battery is rated at approximately 100 amp-hours. The batteries are wired in parallel to give 12 volts nominal at 200 amp hours of storage.
Advanced Solar Wireless Controller Features:
- Long life SLA Battery
- Stand-alone solar panel (solar powered)
- Pad, pole, or other mount enclosure
- Lockable weatherproof cabinet
- Available with DC upgrade kits
- Internal branch circuit protection
- Easy to install electrical connections
- microcontroller PLC
- 120 VAC Single Phase or 240 VAC Two-Phase (AC powered)
- Upgrade kits for dual zones, advance warning beacons, RRFBs, AC or DC beacon kits, and external switches (gates), and audible sound notifications
Related Links
- Product warranty
- Product spec sheets

LED Enhanced Signage

Button

Flashing LED Signs
LED-Enhanced Signage
- Our MUTCD LED border-enhanced pedestrian traffic warning signs offer an easy, economical way to create safer environments for pedestrians and motorists. LED signage reinforces existing traffic control and pedestrian warning measures without the need to install additional beacons or expensive over-hanging equipment.
- Eight bars containing 24 high-intensity flashing amber light-emitting diodes—more lights than any other LED enhanced sign of its kind—warn motorists in real-time of pedestrian activity at crosswalks, school zones, trails, campuses, and parking structures.
- Our highly visible LED signs are also used at warehouses to warn pedestrians of heavy equipment traffic and at stop signs where additional warning measures are needed.
Features
- High visibility—up to one mile
- 24 high-intensity LEDs per sign
- Three times more LEDs than competitors
- Enlighten1 flash rateTen times higher duty cycle rate than competitors
- Wireless pedestrian activation
- A/C, solar, or wireless solar power
- Typically used in conjunction with in-roadway warning lights
- Stand-alone sign systems include controller, activation, battery (See Sign Systems)
- 12 VDC operation down to 10 VDC
- Easily mounts to standard poles using tamper-resistant hardware
- Simple electrical connections
- Maintenance-free operation
- LED modules contained within NEC standard conduit bodies
Applications
- LED signs can be used with in-roadway warning lights at crosswalks or as stand-alone systems and conform to MUTCD national highway sign standards. LED signs activate via push button, automatic activation bollard, Remote Activation Device (RAD), or other 12 VDC relay methods.
- Available in standard 30″, 36″, or 48″ sizes. Custom signs are available upon request. LED signs are ideal for use at:
- public crosswalks
- parks and trails
- school zones
- facilities
- airports
- parking structures
- Stop signs
- Curves and traffic changes ahead
- Roundabouts
Custom LED-Enhanced Signs
- Custom-made signs are available upon request.
Features & Benefits
- 12 VDC operation down to 10 VDC
- Easily mounts to standard poles using tamper-resistant hardware
- Simple electrical connections
- Highly visibility—up to 1 mile
- Maintenance-free operation
- LED modules contained within NEC standard conduit bodies
Related Links
- Product warranty
- Product spec sheets

LED Enhanced Signage

Button
36″ x 36″ solar school crossing sign system w/braille push buttons, National City, CA

Button
Pedestrian (W11-2) Crossing Sign – MUTCD standard. Typically installed with A/W11-2B down pointing arrow sign.

Button
School (S1-1) Crossing Sign – MUTCD standard

Button
Stop Sign (30″Octagon)

Button
Slide title

Cowboy custom flashing LED-enhanced sign

Button
Slide title

Cowboy custom flashing LED-enhanced sign, illuminated

Button
